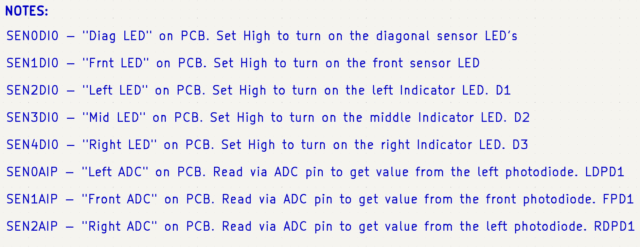

These are the circuits on the wall sensor PCB

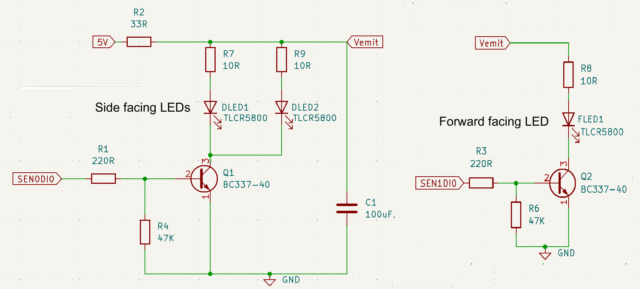

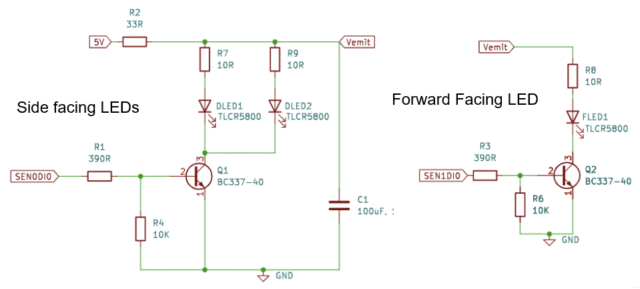

Below are the circuit that drive the LEDs. On the left, the circuit for the two diagonal side wall facing LEDs and on the right the circuit for the single forward facing LED

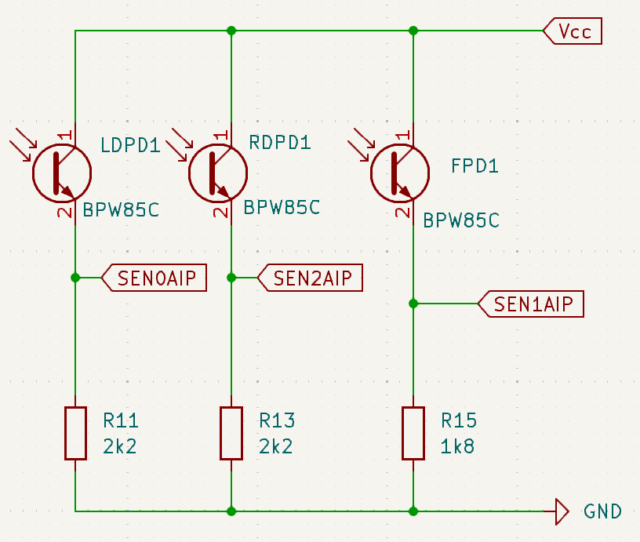

These are the sensors that detect the light coming back from the walls

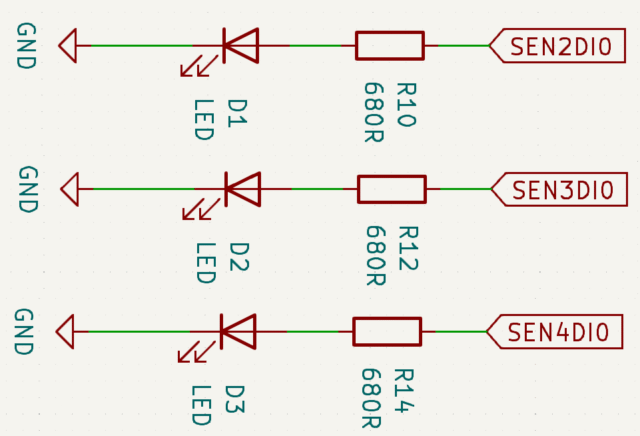

These are the 3 indicator LEDs that can be used as you wish e.g. for showing if if wall is detected on each sensor
This shows the connector to the mezzanine board and the power smoothing circuit
